Oписание продукта





Video Input Signal

Port

Descriptions

DVI-D (24+1)

1

Maximum supported resolution of 1920×[email protected],downwad compatibility

Be compliant with HDMI1.3 and inferior version,EDID version 1.3

HDMI (Type A)

1

Maximum supported resolution of 1920×[email protected],downwad compatibility

Be compliant with HDMI1.3 and inferior version,EDID version 1.3

VGA (HD-15)

1

Maximum supported resolution of 1920×[email protected],downwad compatibility

Be compliant with HDMI1.3 and inferior version,EDID version 1.3

Signal Level:RGB,Hsync,Vsync:0 to 1 Vpp±3dB (0.7V Video+0.3V Sync) 75Ω,Black Level:300mV Sync-tip:0V

BNC

2

NTSC/PAL Automatically Adjust

Signal Level:1VPP±3db (0.7 V Video+0.3V Sync 75Ω

Video Signal Output





DVI-D (24+1)

2

Maximum supported resolution of 1920×[email protected],downwad compatibility

Be compliant with HDMI1.3 and inferior version,EDID version 1.3

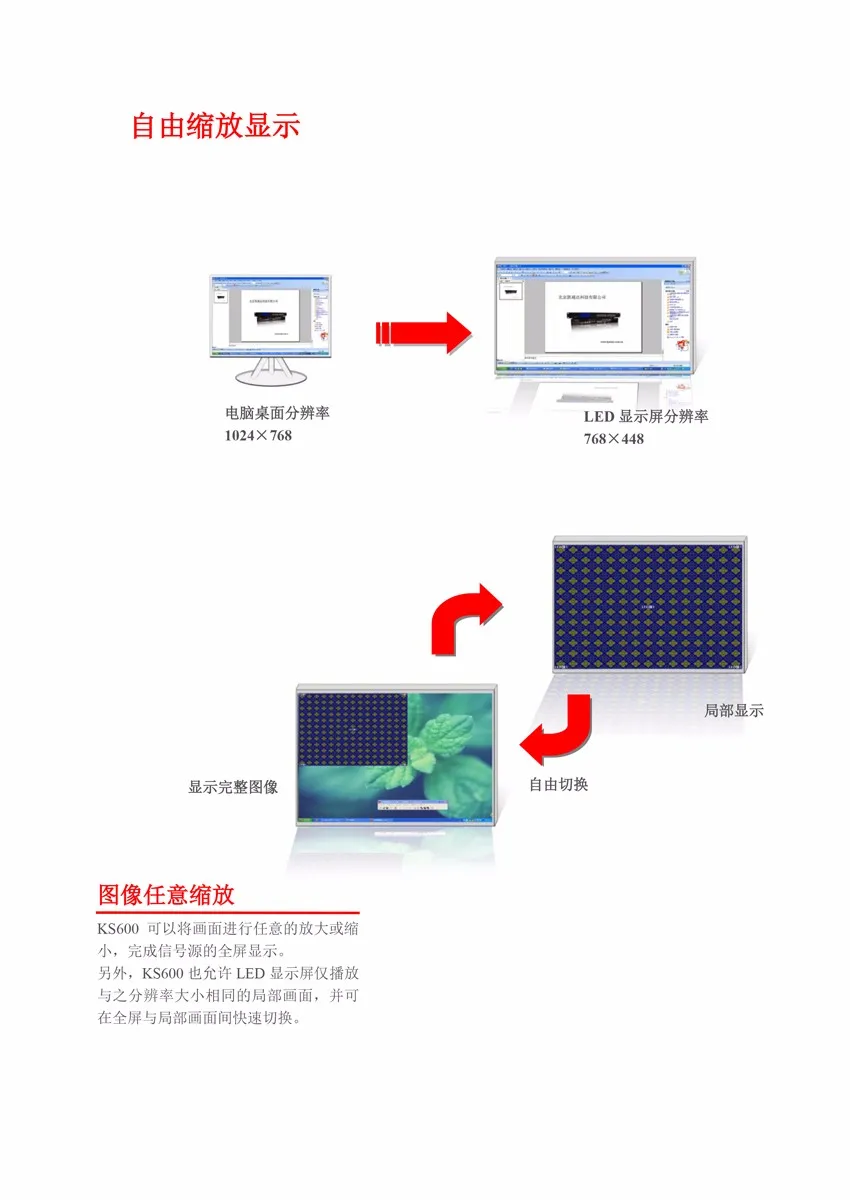

Supported User-defined Resolution:for example 1536×[email protected],1200×[email protected]

Control Connection Port





RS232 (RJ11)

1

Baud Rate:9600

RJ11 to RS232 Connection Cable

Features





Fade-in Fade-out



Support

Humanized UI

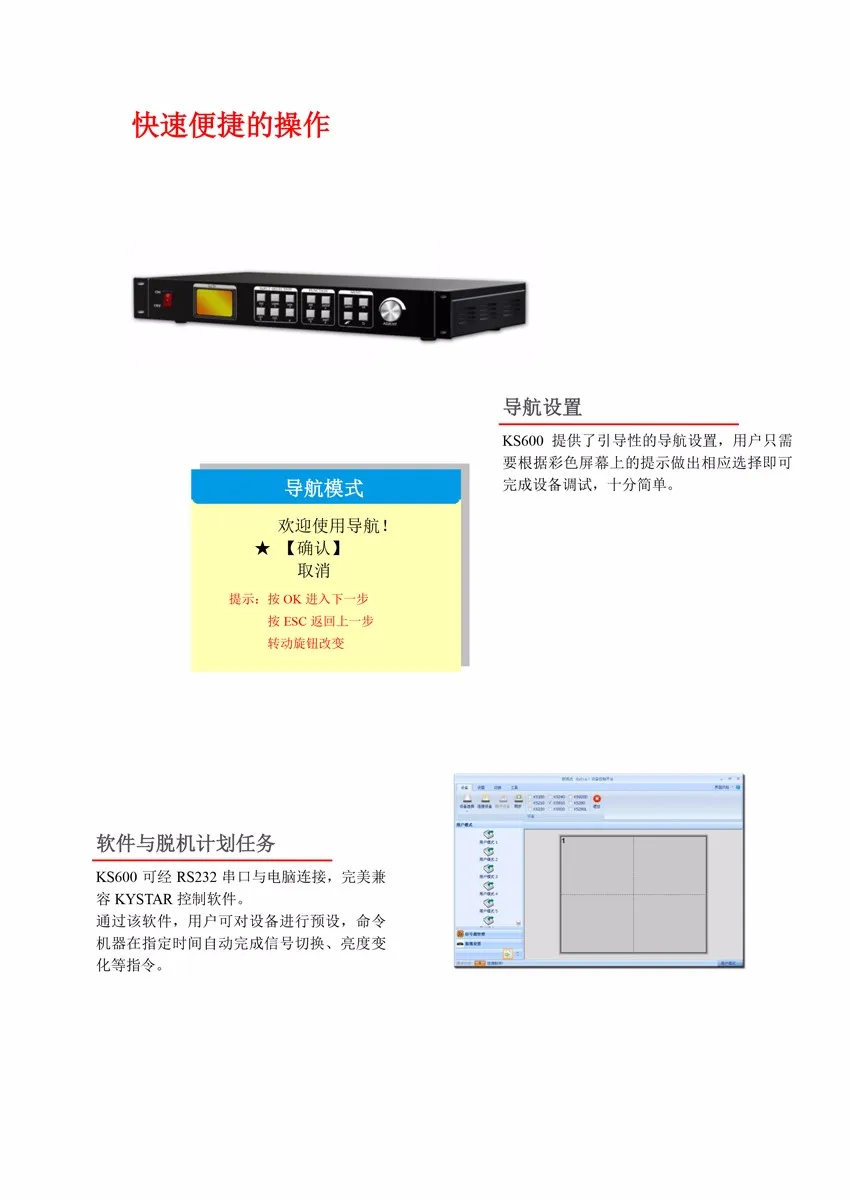

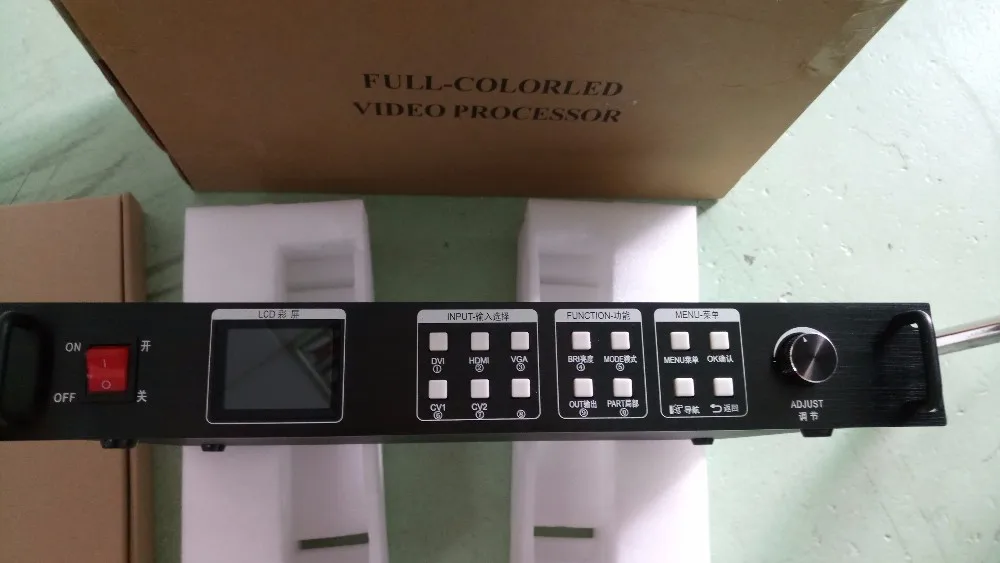

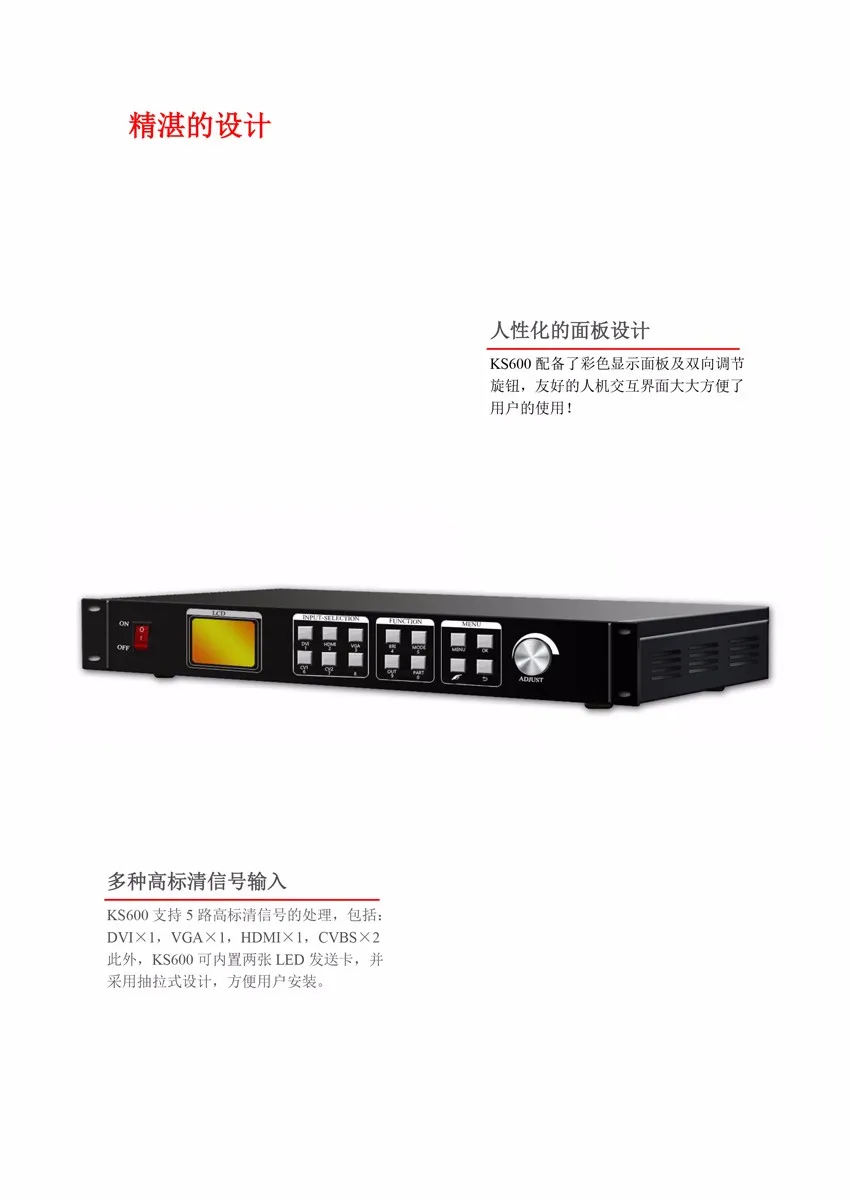

KS600 is equipped with color lcd display,digital keyboards and adjusting knob,and supports guide settings

Scheduled Task



Users can preset the equipment to auto-perform the specified operation at a certain time.

Others





PC Control

RS232/USB

Size:66H×432L×225W(mm)

Weight

3.5kgs

Input Voltage:100-240V AC,47-63HZ,≤2A

Working Environment

0-40,0-95% humidity

Warranty:2 Years



IMG_20160928_092317IMG_20160928_092201



234

HTB1p0TdLXXXXXbpXVXXq6xXFXXXo



HTB1UUG8LXXXXXctaXXXq6xXFXXXD
