Oписание продукта

If you don\'t know how to use it , please contact me ,I will send the battery tester operation manual to your Emails ,Thank you


For iPhone 4/4S/5G/5S/6G/6P/6S/6SP/7/7P/8/8P/X battery
For iPad 3/4; iPad Mini 1/2/3/4; iPad Air; iWatch S1/S2 battery


Function:
1.The basic parameters of the battery test
2. Activation of battery sleep state
3. Battery original and non-original identification
4. Battery charging test
5. Battery discharge test
6. The battery charge and discharge test curve shows
7. The number of cycles of the battery is cleared
8. The number of cycles of the battery is modified any number of times
9. Repair of basic parameters battery  information
10. Battery product serial NO., factory serial NO. of the repair

Operation:
Power Supply Voltage:5V(DC);
Power supply mode: mobile power, mobile phone charger, built-in 3.7V rechargeable batteries (optional);
Working environment :-10—40℃;
Standby power consumption:≤1W.

Package:
Testing Board * 3pcs
Discharge load resistor * 1pcs
USB Wire * 1pcs
Battery Tester Host * 1pcs

battery checker53


5314

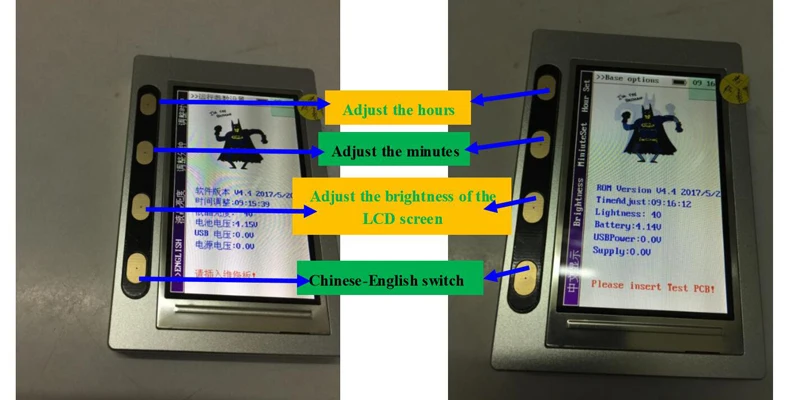

1.System setting:(Note: To do this, remove all test boards)



 20

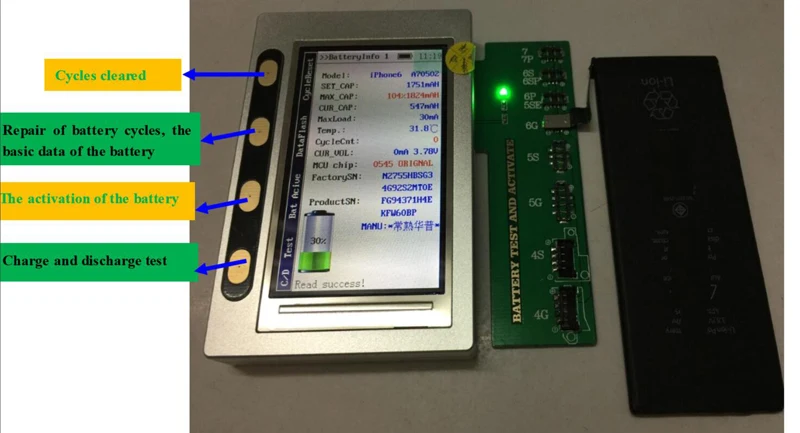

2. The basic parameters of the battery test: When the test instrument plug in the test board, and then access the appropriate model of the battery, it will automatically display the basic parameters of the battery LCD display.



21

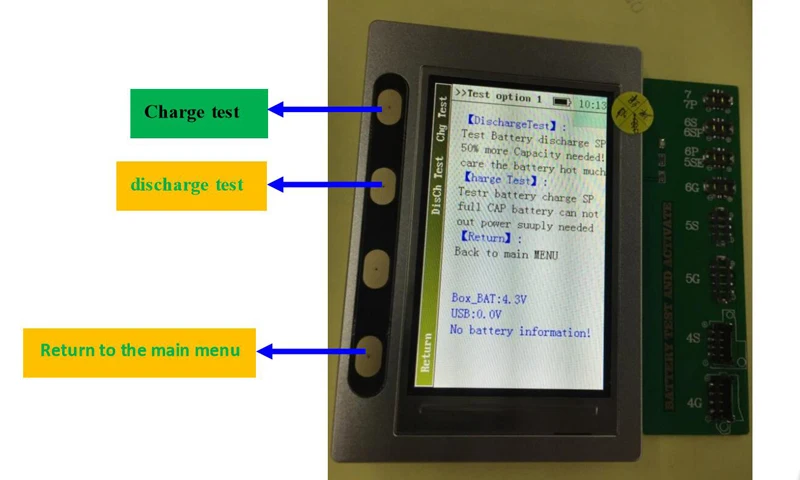

3. The battery charge and discharge test: Note: The charge test requires an external power supply; discharge test need to connect the discharge resistance load



22

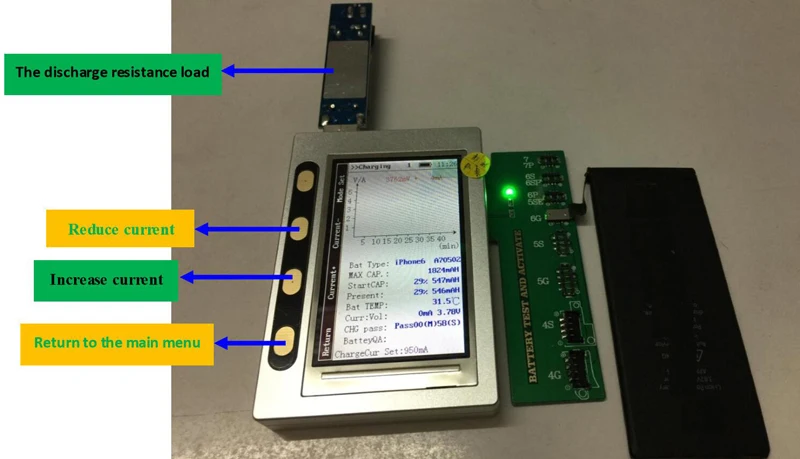

A:The battery discharge test



23



B:The battery charge test

13



C: Charge and discharge test instructions: Charge and discharge test will show the charge and discharge current, voltage curve for the user reference. The instrument will return the test time recorded during the electrical test, test the initial capacity of the battery, and change the battery capacity during the test.

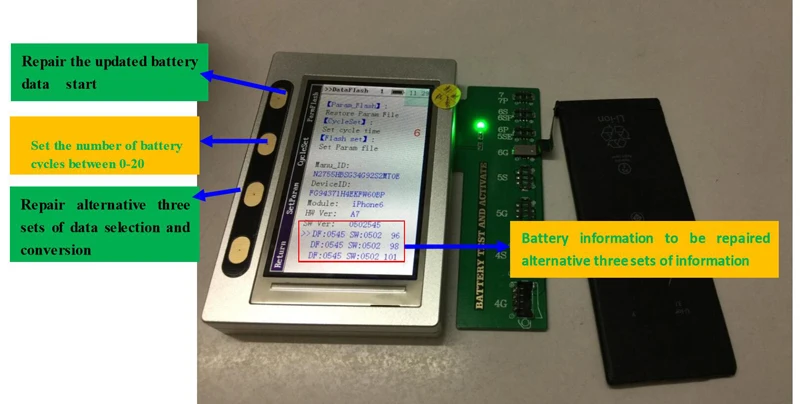

4. Battery data repair and update (not connected to PC operation):



24







5. Software upgrade, connect PC repair data operation:

    Connect PC Repair and update of battery data:

25
