Oписание продукта

1th.  Product descriptions
    TK-5000 video processor is a high-performance full-color LED video processor, using advanced European and American image processing chip for scheme design. The product design uses 30 bit digital image processing technology、advanced de- interlacing signal processing and true seamless handover technology for professional demonstration environment.
    Compared with ordinary LED full-color video processor on the market, TK-5000 support the highest resolution ratio that can reach [email protected]; support 1 DVI and 2 HDMI, 2 VGA, 2 BNC Road, a total of 7 input signals, and can be customized according to user needs audio function.

2th. Product features

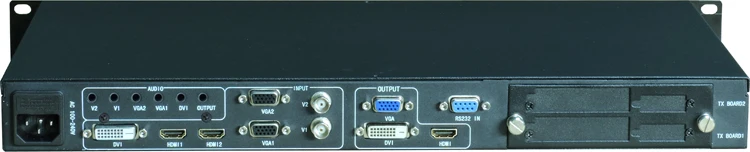

1) Multiple input interfaces
     Support 2 SD,2 VGA, 2 HDMI and 2 DVI signal input, and almost meet all of your project\'s signal requirements.

2) Multiple output interfaces
​    Support 1 HDMI, 1 DVI and 1 VGA signal synchronous output, HDMI and DVI can be connected to transmission module, VGA can be used for video signal synchronization monitoring system.

3) Output a variety of resolution ratio
    [email protected] [email protected] [email protected] [email protected] [email protected] [email protected] [email protected] [email protected] [email protected] [email protected] [email protected] [email protected] [email protected] [email protected] [email protected] [email protected]  [email protected]  [email protected]

4)Seamless handover
    It is fast handover and fade-in and fade-out for the input signal, and no black screen during handover, in this way, we can enhance and present the professional quality of the demo screen,Meanwhile, we can simultaneously realize the audio and video signal synchronization handover. The following is the fade-in and fade-out effect:

5)The PIP of an arbitrary position and size
 The signal source, the PIP screen size, screen position can be adjusted, truly arbitrary control
Image capture function

6)picture capture function
The user can cut any part of the input signal according to its own requirements and display it in the full screen of the large display unit, as shown in the following picture:

7) audio customization independent audio output
Support to customize all audio input signals to switch synchronously. The HDMI signal is embedded with audio, VGA, DVI and BNC signals are embedded with audio, and the HDMI is embedded with audio output. And it supports an independent audio output .

8) picture freeze
Support screen freeze feature, so you can always capture video wonderful moments;

9) One button black screen
Support one button black screen switching function, sometimes it is convenient to completely close the display content or reduce indoor brightness of the place;

10) broadcast level image scaling engine
Using a high-performance 30 bit Faroudja® DCDi image scaling engine, The resolution of the signal can be converted by the downward or upward at various resolution ratios.

11) A LED video processor that can be spliced
Multiple LED video processor by adding the signal distributor in the front, and then set by simple splicing, do not need to buy expensive splicing controller can realize super resolution, LED full color display, the largest number of splicing to 10x10;

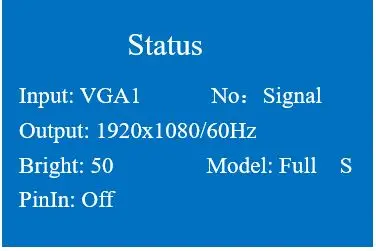

12) LCD interface
There is a built-in LCD display screen in the Front panel of the device , the screen can display directly the machine working state, such as the signal source, input resolution, switching mode, PIP mode switch etc....

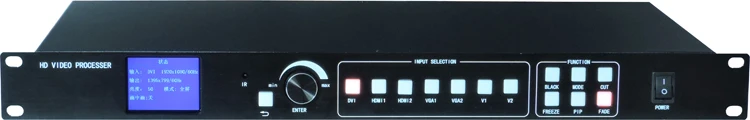

13)Clear push-button navigation
All equipment buttons built-in indicator light, through the chassis button indicator navigation, you can very directly see the device working conditions, such as the current display signal channel, seamless splicing mode...

14)A variety of control methods
The full function control of the equipment can be realized by the key of the cabinet, and the interface control software can also be supported by RS-232, infrared remote control and open control code central control


3th.Wiring and installation
1

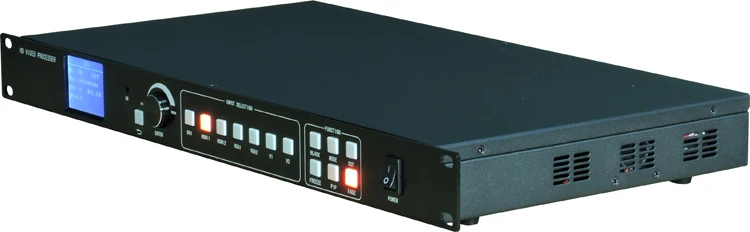

4th.Product pictures

DSCN4277DSCN4278DSCN4279DSCN4282-1





5thTechnical specifications

Video input

port

Number

Supported Standards

Compound (BNC input)

2

PAL、NTSC、PAL-M/N、SECAM

VGA(DB-15)

2

VESA standard,PC to 1920x1200,HD to 1080p

HDMI 1.3a

2

480i/p、576i/p、720p、1080i/p,color depth supports 8, 10, and 12 bits

DVI

1

VESA standard,PC to 1920x1200,HD to 1080p

support 1 loop out

Video output

HDMI

1

[email protected]  [email protected] [email protected]  [email protected]    [email protected]      [email protected]     [email protected]      [email protected]    [email protected]   [email protected]  [email protected]   [email protected]    [email protected]       [email protected]     [email protected]        [email protected]

[email protected]        [email protected]

DVI

1

VGA

1

Auxiliary

Power supply

100VAC – 240VAC 50/60HZ

power consumption

20W

Chassis weight

3.5KG

Chassis size

44cmx24cmx4.4cm

Package size

56.5cm-14cm-35cm

Package weight

4.2KG
